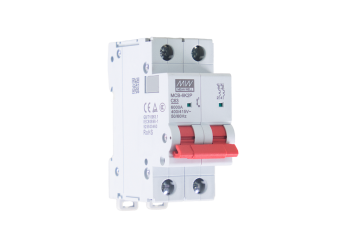

MCB-6K
Miniature Circuit Breaker Mean Well
- International Certification Standards:
- The 10963-1 certification
- TUV and CCC certifications
- Residential Applications
- Commercial Buildings
- Industrial Facilities
- High Performance and Stability
- Comprehensive Protection Features
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Descriere
- International Certification Standards:
- The 10963-1 certification ensures that MCB series products meet the latest international electrical device standards, providing excellent overload and short circuit protection.
- TUV and CCC certifications further demonstrate our strict requirements for product quality and safety. - Wide Range of Applications:
- Residential Applications: Suitable for household circuit systems, effectively protecting the safety of home appliances and circuits.
- Commercial Buildings: Ensuring electrical safety in offices and commercial spaces, reducing the risk of unexpected power outages.
- Industrial Facilities: Used in various factories and large installations, providing robust and efficient protection measures. - High Performance and Stability:
MCB series products have a fast response time, able to trip immediately in case of overload or short circuit, reducing the likelihood of device damage. - Comprehensive Protection Features:
Equipped with a tripping indication window that clearly shows the on/off status of the circuit breaker, easy to combine and install, enhancing safety and operability.
Specificație tehnică
- MCB-6K: Miniature Circuit Breaker 2P/3P (Details)
| Model | Rated Short Circuit | Polar | Instantaneous Tripping Characteristic | Rated Current(A) | Rated Working Voltage | Dimensions |
| MCB-6K2P-C10 | 6kA | 2P | C | 10 | AC400 415V |
81.5×36×72mm |
| MCB-6K2P-C16 | 6kA | 2P | C | 16 | AC400 415V |
81.5×36×72mm |
| MCB-6K2P-C32 | 6kA | 2P | C | 32 | AC400 415V |
81.5×36×72mm |
| MCB-6K2P-C63 | 6kA | 2P | C | 63 | AC400 415V |
81.5×36×72mm |
| MCB-6K2P-D10 | 6kA | 2P | D | 10 | AC400 415V |
81.5×36×72mm |
| MCB-6K2P-D16 | 6kA | 2P | D | 16 | AC400 415V |
81.5×36×72mm |
| MCB-6K2P-D32 | 6kA | 2P | D | 32 | AC400 415V |
81.5×36×72mm |
| MCB-6K2P-D63 | 6kA | 2P | D | 63 | AC400 415V |
81.5×36×72mm |
| MCB-6K3P-D10 | 6kA | 3P | D | 10 | AC400 415V |
81.5×54×72mm |
| MCB-6K3P-D16 | 6kA | 3P | D | 16 | AC400 415V |
81.5×54×72mm |
| MCB-6K3P-D20 | 6kA | 3P | D | 20 | AC400 415V |
81.5×54×72mm |
| MCB-6K3P-D32 | 6kA | 3P | D | 32 | AC400 415V |
81.5×54×72mm |
| MCB-6K3P-D63 | 6kA | 3P | D | 63 | AC400 415V |
81.5×54×72mm |
