GE24

Interchangeable industrial adaptor

Producător: MEAN WELL
Producător: MEAN WELL
  • wide input voltage range of 90-264VAC
  • Replaceable AC plugs (not included, can be purchased separately)
  • no-load power consumption <0.3W
  • compliant with ErP 2 and EISA 2007
  • protections: short circuit, overvoltage and overload protection
  • class II insulation
  • working temperature 0 ~ + 30 ° C (up to 50 ° C at 50% load)
  • compliance with many standards and certificates
  • fully enclosed plastic housing
  • 2 years warranty
Preț de la 3,90 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 13 model

Promocja cenowa na model HDR-15-5

Modele

Accesorii

Useful products

Descriere

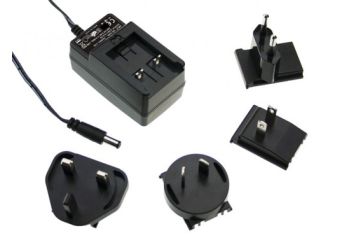

The MEAN WELL GE24 power supply has an output power of 24W and is available in several variants of output voltages. The main feature is the ability to change the input plug, thanks to which the power supply can work in many countries around the world.

Specificație tehnică

Model Wyjście Tolerancja Zakłócenia Wydajność Wtyk Wymiary
GE24I05-P1J 5V, 0~3A +/-5% 50mV 76.5% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE24I07-P1J 7.5V, 0~2A +/-5% 75mV 79.5% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE24I09-P1J 9V, 0~2.22A +/-5% 100mV 81.5% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE24I12-P1J 12V, 0~2A +/-3% 120mV 82.5% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE24I15-P1J 15V, 0~1.6A +/-3% 150mV 84% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE24I18-P1J 18V, 0~1.33A +/-3% 180mV 84% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE24I24-P1J 24V, 0~1A +/-3% 240mV 85% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE24I48-P1J 48V, 0~0.5A +/-3% 300mV 85% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
