GE18

Interchangeable industrial adaptor

Producător: MEAN WELL
Producător: MEAN WELL
  • wide input voltage range of 90-264VAC
  • Replaceable AC plugs (not included, can be purchased separately)
  • no-load power consumption <0.3W
  • compliant with ErP 2 and EISA 2007
  • protections: short circuit, overvoltage and overload protection
  • class II insulation
  • working temperature 0 ~ + 30 ° C (up to 50 ° C at 50% load)
  • compliance with many standards and certificates
  • fully enclosed plastic housing
  • 2 years warranty
Preț de la 3,90 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 13 model

Promocja cenowa na model HDR-15-5

Modele

Accesorii

Useful products

Descriere

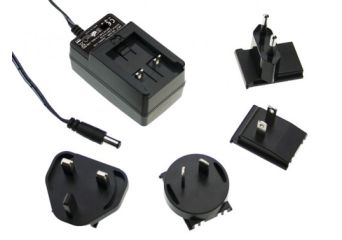

The GE18 plug-in power supply has interchangeable tips (input plugs), thanks to which it can be used in many countries around the world.

Specificație tehnică

Model Output Tolerance Noise Efficiency Plug Dimensions
GE18I05-P1J 5V, 0~2.4A +/-5% 50mV 75% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE18I07-P1J 7.5V, 0~1.73A +/-5% 75mV 79% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE18I09-P1J 9V, 0~2A +/-5% 100mV 81% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE18I12-P1J 12V, 0~1.5A +/-3% 120mV 82% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE18I15-P1J 15V, 0~1.2A +/-3% 150mV 84% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE18I18-P1J 18V, 0~1A +/-3% 180mV 84% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE18I24-P1J 24V, 0~0.75A +/-3% 240mV 85% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
GE18I48-P1J 48V, 0~0.375A +/-3% 300mV 85% P1J 2.1Øx5.5Øx11mm 81x43x40.5mm
