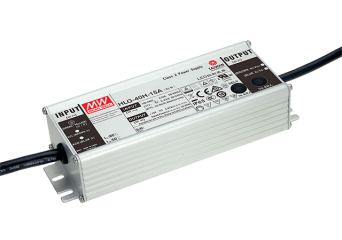

HLG-40H

40W LED power supply with a metal, waterproof housing with IP67 / IP65

Producător: MEAN WELL
Producător: MEAN WELL
  • supply voltage: 90-305VAC; 127-431VDC
  • hermetic metal housing in accordance with the IP67 / IP65 standard
  • built-in active PFC function
  • 4KV surge immunity in accordance with IEC61000-4-5
  • short circuit, overcurrent, overvoltage and thermal protection
  • current and output voltage regulation in A models
  • 3in1 dimming function in B version models (1 ~ 10VDC, PWM, resistor)
  • current and voltage regulation + 3in1 dimming function on AB models
  • cooling with open air circulation
  • working temperature -40 ~ + 80 ° C
  • efficiency up to 89.5%
  • compliance with a number of standards and certificates
  • 5-year warranty

Discounted prices and exact stock levels are visible after logging in to the e-shop.

Preț de la 153,90 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Transport gratuit pentru orice comandă, oriunde în România

Vezi 36 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale
HLG-40H

HLG-40H

Modele

Descriere

The HLG series power supplies are characterized by a sealed metal housing, so they can also be used outdoors. The HLG models are available in four versions, i.e. without designation, A, B (with leads out), AB or version D (optionally with a programmed dimming timer). The models can adjust the voltage and output currents without opening the housing (through holes with plugs in version A, or by connecting an external resistor, PWM signal or voltage 1 ~ 10VDC in version B). The entire series has a built-in active PFC function. They are designed to power a wide range of devices, including lighting and decorative LED systems, including individual LEDs, strips, modules, panels, halogen LED bulbs, etc. The HLG-40H-24-B/AB and HLG-100H-12-B/AB models are designed for dimmable LED strips.

Specificație tehnică

  • HLG-40H: Power supplies for LED lighting systems 40W SPECIFICATION
Model Output Tolerance Ripple&Noise Efficiency Cable length Dimensions
HLG-40H-12 12V, 0~3.33A +/-2.5% 150mV 86.5% 300mm 171x61.5x36.8mm
HLG-40H-15 15V, 0~2.67A +/-2% 150mV 86.5% 300mm 171x61.5x36.8mm
HLG-40H-20 20V, 0~2A +/-1% 150mV 88% 300mm 171x61.5x36.8mm
HLG-40H-24 24V, 0~1.67A +/-1% 200mV 88% 300mm 171x61.5x36.8mm
HLG-40H-30 30V, 0~1.34A +/-1% 200mV 88.5% 300mm 171x61.5x36.8mm
HLG-40H-36 36V, 0~1.12A +/-1% 200mV 88.5% 300mm 171x61.5x36.8mm
HLG-40H-42 42V, 0~0.96A +/-1% 200mV 88.5% 300mm 171x61.5x36.8mm
HLG-40H-48 48V, 0~0.84A +/-1% 300mV 89.5% 300mm 171x61.5x36.8mm
HLG-40H-54 54V, 0~0.75A +/-1% 300mV 89.5% 300mm 171x61.5x36.8mm

Descarca documentatie
