Producător: MEAN WELL
- Compact dimensions
- Input voltage range 20~55Vdc
- Control using an external controller
- Cooling with open air circulation
- Possibility of 5-second overload up to 200% power
- Built-in temperature and input voltage sensor
- Permissible operating temperature range -30~70°C
- 3 years warranty
Preț de la 84,30 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
VFD-150P-48
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareVFD-150P-48variable frequency drive 150W 20~55VDC/0~34VOut of stock Garanție: 84,30 RON103,69 RONIntră în cont pentru a vedea prețurile VFD-150P-48variable frequency drive 150W 20~55VDC/0~34VDisponibilitate: Out of stockPreț net:84,30 RON
Descriere

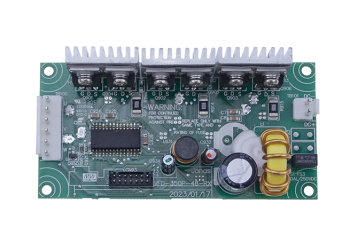

VFD-150P-48 is an inverter module designed to control an external PWM controller. The input voltage range is 20~55VDC. Thanks to its high performance, compact design without a housing and convection cooling, the module is perfect for installation inside an end device. VFD-150P-48 is dedicated to driving BLDC and induction motors and SynRM solutions.
Specificație tehnică
- VFD-150P-48: SPECIFICATION
| Model | Input | Output | Output freq. | Efficiency | Dimensions |
| VFD-150P-48 | 20~55VDC | 0~34V, 4.3A | 2.5kHz~15kHz | 93% | 101.6x50.8x28.6mm |
