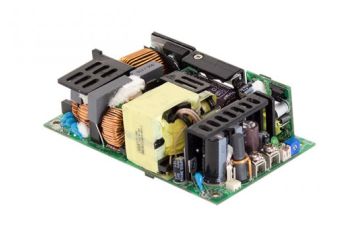

main product photo

RPS-400

Medical power supply RPS: RPS-400-12, RPS-400-15, RPS-400-24, RPS-400-27, RPS-400-36, RPS-400-48, RPS-400-12-C, RPS-400-15-C, RPS-400-24-C, RPS-400-36-C, RPS-400-48-C, RPS-400-12-SF, RPS-400-15-SF, RPS-400-24-SF, RPS-400-27-SF, RPS-400-36-SF, RPS-400-48-SF, RPS-400-12-TF, RPS-400-15-TF, RPS-400-24-TF, RPS-400-27-TF, RPS-400-36-TF, RPS-400-48-TF

Producător: MEAN WELL
Producător: MEAN WELL
  • 5”x3” compact size
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/EN60601-1
  • Suitable for BF application with appropriate system configuration
  • 250W convection, 400W force air
  • EMI Class B for Class I & Class A for Class II configuration
  • No load power consumption<0.5W by PS-ON control
  • 5Vdc standby output, 12Vdc fan supply, Power Good, Power Fail and remote sense
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Operating altitude up to 4000 meters
Preț de la 345,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 23 model

Promocja cenowa na model HDR-15-5

Zasilacz medyczny RPS-400-24 MEAN WELL

RPS-400

Modele

Descriere

RPS-400 is a 400W highly reliable green PCB type medical power supply with a high power densiły on the 5” by 3” footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. RPS-400 (blank type only) is able to be used for both Class I (with FG) or Class II (no FG) system design.

The extremely low leakage current is less than 160μA. In addition, it conforms to international medical regulations (2*MOPP) and EMC EN55011, perfectly fitting all kinds of BF rated "patient contact” medical system equipment. RPS-400 series also offers the enclosed style models( -C / TF /SF )

Available models:

  • 12V: RPS-400-12, RPS-400-12-C, RPS-400-12-SF, RPS-400-12-TF
  • 15V: RPS-400-15, RPS-400-15-C, RPS-400-15-SF, RPS-400-15-TF
  • 24V: RPS-400-24, RPS-400-24-C, RPS-400-24-SF, RPS-400-24-TF
  • 27V: RPS-400-27, RPS-400-27-SF, RPS-400-27-TF
  • 36V: RPS-400-36, RPS-400-36-C, RPS-400-36-SF, RPS-400-36-TF
  • 48V: RPS-400-48, RPS-400-48-C, RPS-400-48-SF, RPS-400-48-TF

Specificație tehnică

RPS-400: 399-403W DETAILS

Model Output Tolerance Ripple & noise Efficiency Dimension
RPS-400-12 12V, 0~33.3A +/-3% 120mV 91.5% 127x76.2x35mm
RPS-400-15 15V, 0~26.7A +/-3% 150mV 92% 127x76.2x35mm
RPS-400-18 18V, 0~22.3A +/-3% 1800mV 93% 127x76.2x35mm
RPS-400-24 24V, 0~16.7A +/-2% 200mV 93% 127x76.2x35mm
RPS-400-27 27V, 0~14.9A +/-1% 200mV 93.5% 127x76.2x35mm
RPS-400-36 36V, 0~11.2A +/-1% 250mV 93% 127x76.2x35mm
RPS-400-48 48V, 0~8.4A +/-1% 250mV 94% 127x76.2x35mm
