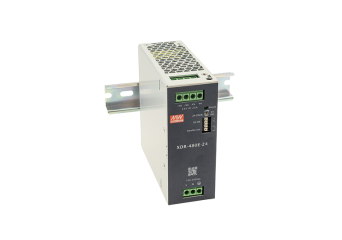

XDR-480E
Economical Ultra Slim Industrial DIN Rail Power Supply
- High efficiency up to 96% and no load power dissipation<1.2W
- Over voltage category III (OVC III)
- 48mm slim width
- Current sharing up to 1920W (3+1) for parallel use
- Global certificates in multi-fields(ITE 62368-1,Industrial 61558-1/-2-16,61010)
- 85~264Vac input with PFC
- Built-in constant current limiting circuit
- Protections: Short circuit / Overload / Over voltage/ Over temperature
- Fanless design, cooling by free air convection
- -40~+70C wide range operation temperature (>+50℃ derating)
- Operating altitude up to 5000 meters
- Built-in DC OK relay contact
- Can be installed on DIN rail TS-35/7.5 or 15
- 3 years warranty
Discounted prices and exact stock levels are visible after logging in to the e-shop.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionale
Modele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXDR-480E-12DIN rail power supply 360W 12V 30AOut of stock Garanție: 465,90 RON573,06 RONIntră în cont pentru a vedea prețurile XDR-480E-12DIN rail power supply 360W 12V 30ADisponibilitate: Out of stockPreț net:465,90 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXDR-480E-24DIN rail power supply 480W 24V 20AÎn stocGaranție: 465,90 RON573,06 RONIntră în cont pentru a vedea prețurile XDR-480E-24DIN rail power supply 480W 24V 20ADisponibilitate:În stocPreț net:465,90 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXDR-480E-36DIN rail power supply 480W 36V 13.3AOut of stock Garanție: 465,90 RON573,06 RONIntră în cont pentru a vedea prețurile XDR-480E-36DIN rail power supply 480W 36V 13.3ADisponibilitate: Out of stockPreț net:465,90 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareXDR-480E-48DIN rail power supply 480W 48V 10AOut of stock Garanție: 465,90 RON573,06 RONIntră în cont pentru a vedea prețurile XDR-480E-48DIN rail power supply 480W 48V 10ADisponibilitate: Out of stockPreț net:465,90 RON
Descriere
The XDR-480E series is a 480W AC/DC economical ultra slim industrial DIN rail power. Key features of this series include a narrow 48mm casing, optimizing system installation space, and an ultra-wide input
range of 85~264Vac suitable for global use. It boasts a maximum efficiency of 96% and a low standby power consumption <1.2W for energy savings and carbon reduction. It has built-in constant current, fanless design, a wide operating temperature range of -40 to +70 (up to +50 at full load); OVCIII compliance; parallel function capability up to 1920W; built-in DC OK signal. With comprehensive protection functions, complete safety certifications, and a 3 years warranty, the XDR-480E series is a compact, high-performance, and highly reliable DIN rail power supply.
Available models:
- 12V: XDR-480E-12
- 24V: XDR-480E-24
- 36V: XDR-480E-36
- 48V: XDR-480E-48
See additional MEAN WELL XDR-E series power supplies:
Specificație tehnică
XDR-480E: 480W Economical Ultra Slim Industrial DIN Rail Power -> Manufacturer specification
| Model | Input voltage | Output parameters | Output voltage tolerance | Efficiency | Dimension (LxWxH) |
| XDR-480E-12 |
85~264VAC, 120~370VDC |
12V, 0~30A | +/-2% | 94% | 48x125.2x125mm |
| XDR-480E-24 |
85~264VAC, 120~370VDC |
24V, 0~20A | +/-1% | 95.5% | 48x125.2x125mm |
| XDR-480E-36 |
85~264VAC, 120~370VDC |
36V, 0~13.3A | +/-1% | 95.5% | 48x125.2x125mm |
| XDR-480E-48 |
85~264VAC, 120~370VDC |
48V, 0~10A | +/-1% | 96% | 48x125.2x125mm |
