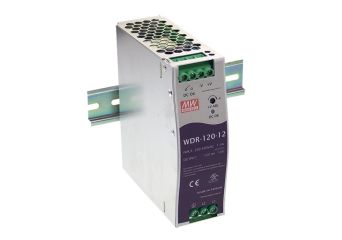

WDR-120

DIN rail power supply DIN - wide input range: WDR-120-12, WDR-120-24, WDR-120-48

Producător: MEAN WELL
Producător: MEAN WELL
  • Single and two phase wide input range 180~550VAC
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL508(industrial control equipment)approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Built-in DC OK relay contact
Preț de la 278,80 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 3 model

Promocja cenowa na model HDR-15-5

Modele

Descriere

  • Single and two phase wide input range 180~550VAC
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL508(industrial control equipment)approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Built-in DC OK relay contact

Available models:

  • 12V: WDR-120-12
  • 24V: WDR-120-24
  • 48V: WDR-120-48

Specificație tehnică

WDR-120: 120W DETAILS

Model Output Tolerance Ripple & noise Efficiency Dimension
WDR-120-12 12V, 0~10A +/-1.5% 120mV 89.5% 40x125.2x113.5mm
WDR-120-24 24V, 0~5A +/-1% 120mV 91% 40x125.2x113.5mm
WDR-120-48 48V, 0~2.5A +/-1% 150mV 92% 40x125.2x113.5mm
