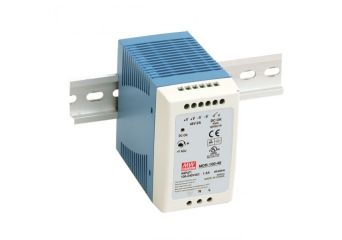

MDR-100

Industrial DIN rail power supply: MDR-100-24, MDR-100-12, MDR-100-48

Producător: MEAN WELL
Producător: MEAN WELL
  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • ZCS/ZVS technology to reduce power dissipation
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • DC OK relay contact
  • No load power consumption<1W
  • LED indicator for power on
  • 100% full load burn-in test

Preț de la 155,80 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 3 model

Promocja cenowa na model HDR-15-5

Modele

Descriere

  • Universal AC input / Full range
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • ZCS/ZVS technology to reduce power dissipation
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • DC OK relay contact
  • No load power consumption<1W
  • LED indicator for power on
  • 100% full load burn-in test

Available models:

  • 12V: MDR-100-12
  • 24V: MDR-100-24
  • 48V: MDR-100-48

Specificație tehnică

MDR-100: 90-96W DETAILS

Model Output Tolerance Ripple & noise Efficiency Dimension
MDR-100-12 12V, 0~7.5A +/-1% 120mV 85% 50x90x100mm
MDR-100-24 24V, 0~4.0A +/-1% 150mV 86% 50x90x100mm
MDR-100-48 48V, 0~2.0A +/-1% 200mV 88% 50x90x100mm
