SDR-75

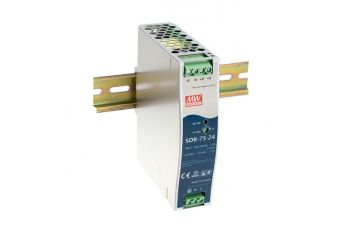

High efficiency DIN rail power supply: SDR-75-12, SDR-75-24, SDR-75-48

Producător: MEAN WELL
Producător: MEAN WELL
  • High efficiency 90% and low power dissipation
  • 150% peak load capability
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test
Preț de la 153,90 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 3 model

Promocja cenowa na model HDR-15-5

Modele

Descriere

  • High efficiency 90% and low power dissipation
  • 150% peak load capability
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or 15
  • UL 508 (industrial control equipment) approved
  • EN61000-6-2(EN50082-2) industrial immunity level
  • 100% full load burn-in test

Available models:

  • 12V: SDR-75-12
  • 24V: SDR-75-24
  • 48V: SDR-75-48

Specificație tehnică

SDR-75: 75W DETAILS

Model Output Tolerance Ripple & noise Efficiency Dimension
SDR-75-12 12V, 0~6.3A +/-1% 100mV 88.5% 32x125.2x102mm
SDR-75-24 24V, 0~3.2A +/-1% 100mV 89% 32x125.2x102mm
SDR-75-48 48V, 0~1.6A +/-1% 120mV 90% 32x125.2x102mm
