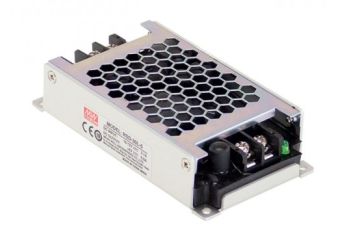

main product photo

RSD-30

RSD - DC/DC converter with railway standard EN50155: RSD-30G-3.3, RSD-30G-5, RSD-30G-12, RSD-30G-24, RSD-30L-3.3, RSD-30L-5, RSD-30L-12, RSD-30L-24, RSD-30H-3.3, RSD-30H-5, RSD-30H-12, RSD-30H-24

Producător: MEAN WELL
Producător: MEAN WELL
  • Compliance to EN50155 and EN45545-2 railway standard
  • Ultra compact and 1U low profile(25mm)
  • 4:1 wide input range
  • No minimum load required
  • Protections: Short circuit / Overload / Over voltage / Input reverse polarity
  • 4000VDC I/O isolation (reinforced isolation)
  • Half encapsulated , cooling by free air convection
  • -40~+70°C wide working temperature
  • Built-in constant current limiting circuit
  • LED indicator for power on
Preț de la 148,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 12 model

Promocja cenowa na model HDR-15-5

Przetowornica DC/DC z normą kolejową RSD-30

RSD-30

Modele

Descriere

RSD-30 is a 30W enclosed type DC-DC reliable railway converter. This series is compliant with EN50155/IEC60571 railway standard, constituting three types of models with 4:1 wide but different input ranges 9~36V/18~72V/40~160V, suitable for railway and all kinds of transportation systems exploiting the frequently used standard input voltages such as 12V, 24V, 36V, 48V, 72V, 96V and 110V. Various output voltages, 3.3V,5V,12V and 24V are available for selection.

This series has the capability of working under -40~+70°C, low ripple and noise, supreme EMC characteristics, 4KVDC I/P-OP, low enclosure profile 25mm and an interior with semi-potted silicone. It does not only well fits the in-car systems or the facilities by rails for railway, trams and buses but also can be used in the harsh environment with high vibration, high dust, extremely low or high temperature, etc.

Available models:

  • 3.3V: RSD-30G-3.3, RSD-30L-3.3, RSD-30H-3.3
  • 5V: RSD-30G-5, RSD-30L-5, RSD-30H-5
  • 12V: RSD-30G-12, RSD-30L-12, RSD-30H-12
  • 24V: RSD-30G-24, RSD-30L-24, RSD-30H-24

Specificație tehnică

RSD-30: 19.8W~30W DETAILS

Model Input Output Ripple & noise Efficiency Dimension
RSD-30G-3.3 9~36V 3.3V, 0~16A 70mV 84% 113x60x25mm
RSD-30G-5 9~36V 5V, 0~6A 70mV 85% 113x60x25mm
RSD-30G-12 9~36V 12V, 0~2.5A 60mV 86.5% 113x60x25mm
RSD-30G-24 9~36V 24V, 0~1.25A 50mV 89% 113x60x25mm
RSD-30L-3.3 18~72V 3.3V, 0~6A 70mV 84% 113x60x25mm
RSD-30L-5 18~72V 5V, 0~6A 70mV 86% 113x60x25mm
RSD-30L-12 18~72V 12V, 0~2.5A 60mV 90% 113x60x25mm
RSD-30L-24 18~72V 24V, 0~1.25A 50mV 91% 113x60x25mm
RSD-30H-3.3 40~160V 3.3V, 0~6A 70mV 87% 113x60x25mm
RSD-30H-5 40~160V 5V, 0~6A 70mV 89% 113x60x25mm
RSD-30H-12 40~160V 12V, 0~2.5A 60mV 89% 113x60x25mm
RSD-30H-24 40~160V 24V, 0~1.25A 50mV 89% 113x60x25mm
