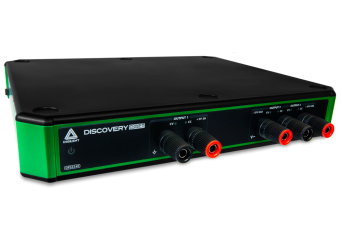

DPS3340 Discovery USB Programmable Power Supply

Trzykanałowy, programowalny zasilacz prądu stałego

Producător: Digilent
Producător: Digilent
  • Output 1 V to 5 V / 10 mA to 3 A
  • Output -1 V to -15 V / -10 mA to -500 mA
  • Output 1 V to 15 V / 10 mA to 500 mA
  • Optional tracking between the -15 V and 15 V outputs
  • Overcurrent protection options provided by WaveForms
  • Auxiliary power supply - 19 V +/- 5%, 3.2 A maximum, 60 W maximum, 5.5 mm x 1.65 mm, center positive
Preț de la 2.785,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Modele

Descriere

The DPS3340 Digilent Discovery USB Programmable Power Supply is a three-channel programmable DC power supply that allows users to control the power delivered to external circuits. Providing constant voltage and constant current modes with built-in readout sensors and optional output channel tracking, you can confidently power your circuits according to your requirements.

Device features:

  • Output 1 V to 5 V / 10 mA to 3 A
  • Output -1 V to -15 V / -10 mA to -500 mA
  • Output 1 V to 15 V / 10 mA to 500 mA
  • Optional tracking between the -15 V and 15 V outputs
  • Overcurrent protection options provided by WaveForms
  • Auxiliary power supply - 19 V +/- 5%, 3.2 A maximum, 60 W maximum, 5.5 mm x 1.65 mm, center positive

Software

The DPS3340 is supported by free WaveForms software, which is compatible with Mac, Linux and Windows. The power supply can be used as a standalone device or in conjunction with any Digilent test and measurement equipment running as its own tool within the WaveForms software - no external triggers or multiple instances of the software are required.

Package contents:

  • DPS3340 device
  • One red and one black crocodile for cable with banana plug
  • European and American IEC cables
  • USB A - B cable.

The specification is reasonable as long as the following conditions are met:

  • Ambient temperature 25 °C
  • Warm-up time is 30 minutes
  • Using the included auxiliary power supply

Power supplies

All channels are independently controlled with independent current and voltage settings.

Insulation voltage

The device is isolated from the network by an external power supply. The outputs share a common GND between themselves and the USB connector of the host PCB.

Protection circuits

All three power supplies feature overcurrent protection via software-set current limits that can be applied individually to each channel. Same-polarity aggressor protection and reverse voltage protection operate up to ±15 V.

Tracking mode

When the tracking mode implemented by the software is active, Outputs 2 and 3 will track each other in absolute values, applying any voltage change made in the setting of one channel to the other channel. For example, if Output 1 is set to 12 V, Output 2 will automatically be set to -12 V.

Connectivity

The DPS3340 requires a host computer with WaveForms software, connected via USB, to operate. Connect the device to the computer via USB 2.0 Hi-Speed, Type B.

Power requirements

The DPS3340 requires an additional power source. A compatible power supply is included with the purchase of the DPS3340.

Supply voltage: 19 V +/- 5% Supply current: 3.2 A maximum

Power consumption: 60 W maximum Barrel connector size: 5.5 mm x 1.65 mm

Dimensions and weight of the device

Dimensions: 23.40 cm x 19.40 cm x 3.81 cm (9.2 in x 7.6 in x 1.5 in)

Weight: 0.704 kg (1.55 lbs)

Operating environment of the device

Operating temperature: 0°C to 40°C (32°F to 104°F)
Storage temperature: -20°C to 60°C (-4°F to 140°F)
Operating humidity: 10% to 80% relative humidity without condensation
Cooling: Convection-cooled. Make sure vents are not obstructed 1) 2).
Degree of contamination: 2
Maximum altitude: 2000 m

1) Side vents provide sufficient cooling for normal
2)The unit's fold-out legs can be used to allow circulation through the vents on the bottom of the unit.

Specificație tehnică

Specification

Output 1

Output 2

Output 3

DC Output Rating

Voltage

1 V to 5 V

-1 V to -15 V

1 V to 15 V

Current

10 mA to 3 A

-10 mA to
-500 mA

10 mA to 500 mA

Maximum Power



30 W (wszystkie kanały, wspólne)



15 W

7,5 W

7,5 W

Programming
Resolution

Voltage

0,36 mV

0,97 mV

0,97 mV

Current

0,19 mA

0,03 mA

0,03 mA

Programming
Accuracy

Voltage

±15 mV

±15 mV

±15 mV

Current

15 mA

8mA

5mA

Readback
Resolution

Voltage

7,8 mV

7,8 mV

7,8 mV

Current

0,81 mA

0,15 mA

0,15 mA

Readback
Accuracy

Voltage

±30 mV

±20 mV

±20 mV

Current

±10 mA

±5 mA

±5 mA

Load Regulation

Voltage

± Iout⋅0,06 V/A

± Iout ⋅0,15 V/A

± Iout ⋅0,15 V/A

Ripple and Noise

Voltage
(20 MHz Bandwidth):

< 30 mV p-p

< 10 mV p-p

< 25 mV p-p

Prąd
(20 MHz Bandwidth):

< 7 mA p-p

< 5 mA p-p

< 3 mA p-p
