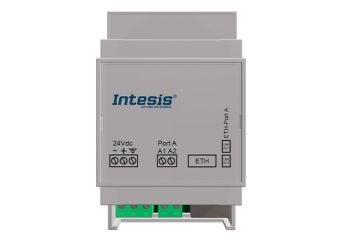

INMBSMEB0200100 - Konwerter M-Bus - ModbusTCP Slave 20

Name: INMBSMEB0200100 - Konwerter M-Bus - ModbusTCP Slave 20
Brand: Anybus
SKU: INMBSMEB0200100

Converter M Bus Modbustcp Slave

Integrate any M-Bus device with Modbus. The aim of this integration is to make accessible M-Bus devices, its registers and resources from a Modbus-based control system or device as if it was a part of the own Modbus system and vice-versa.

Preț de la 2.490,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

INMBSMEB0200100 - Konwerter M-Bus - ModbusTCP Slave 20

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
INMBSMEB0200100 Anybus Mbus to Modbus-TCP 20 gateway	În stoc	Garanție:		2.490,00 RON 3.062,70 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

INMBSMEB0200100

Anybus Mbus to Modbus-TCP 20 gateway

Disponibilitate:

În stoc

Preț net:

2.490,00 RON

Intră în cont pentru a vedea prețurile

Descriere

This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features.

Supporting Modbus TCP ensures 100% compatibility and, at the same time, guarantees seamless integration with any Modbus TCP BMS or controller.

SET UP WITH INTESIS MAPS

The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or import any created/exported project template on your computer.

Intesis MAPS makes it easy to identify any malfunction in the installations thanks to its robust diagnostic feature.

FEATURES

UL Listed.
Scan: Automatic identification of M-Bus devices (meter detection) and registers discovery.
Embedded M-Bus level converter.
Up to 5 TCP clients (incoming sockets) are supported.
Supports Modbus TCP physical layer.
Configuration through IP (Console) port.
Easy integration with Intesis MAPS.
Automatic updates for both Intesis MAPS and the interface’s firmware.

Specificație tehnică

Case	Plastic, type PC (UL 94 V-0). Color: Light Grey. RAL 7035 Net dimensions (dxwxh): 93 x 53 x 58 mm / 3.6 x 2.1 x 2.3" Recommended space for installation (dxwxh): 100 x 60 x 70 mm / 3.9 x 2.4 x 2.7"
Mounting	Wall DIN rail (recommended mounting) EN60715 TH35
Terminal wiring For power supply and lowvoltage signals	Per terminal: solid wires or stranded wires (twisted or with ferrule) Wire cross-section/gauge: One core: 0.2 mm2 .. 2.5 mm2 (24 .. 11 AWG) Two cores: 0.2 mm2 .. 1.5 mm2 (24 .. 15 AWG) Three cores: Not permitted For distances longer than 3.05 meters (10 feet), use Class 2 cables.
Power	1 x Green pluggable terminal block (3 poles) 24 VDC, Max.: 220 mA, 5.2 W Recommended: 24 VDC, 220 mA
Ethernet	1 x Ethernet 10/100 Mbps RJ45
Port A	1 x M-Bus port: pluggable terminal block (2 poles) M-Bus power consumption: 90 mA Voltage rating: 36 VDC
Operational temperature	Celsius: 0 .. 60°C / Fahrenheit: 32 .. 140°F
Operational humidity	5 to 95%, no condensation
Protection	IP20 (IEC60529)
LED indicators	2 x Onboard LED indicators Ethernet Link/Speed
