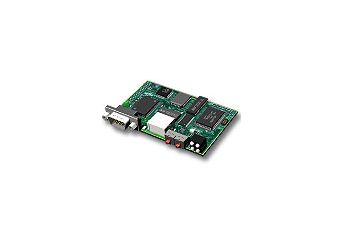

AB4218

Name: AB4218
Brand: Anybus
SKU: 82688

Anybus S FIPIO

Producător: Anybus

Anybus-S FIPIO

Complete FIPIO functionality according to EN 50170
Total Max 64 bytes input & 64 bytes output
Full interchangeability with AnyBus-S modules for other networks
Dual port (DPRAM) parallel interface
Transformer isolated FIP interface
Supports all FIPIO profiles and classes
CE, UL & cUL conformance

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Modele
Descriere
Specificație tehnică
Produse recomandate

AB4218

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
AB4218 SIPIO	Out of stock	Garanție:		0,00 RON -	-

AB4218

SIPIO

Disponibilitate: Out of stock

Preț net:

Descriere

The Anybus-S module for FIPIO is available with a 2 kByte Parallel Dual Port Ram interface. The module supports all FIPIO profiles and classes. FIPIO station adress can be selected via switches on the front side of the module or by software via the application interface. A transformer connection on the module provides a isolated fieldbus interface. A FIPIO network can consist of up to 255 different modules. Each segment of the bus can handle 32 modules. The total amount of IO data (cyclic data) for one FIPIO module are maximum 64 bytes output and maximum 64 bytes input.

Specificație tehnică

Specyfikacja techniczna

Wymiary:	54 mm x 86 mm x 15 mm
Napięcie zasilania:	+5V max 260mA
Temperatura pracy:	0 to +70°C
Baud Rate:b	1 Mbit/s
I/O Input:	64 bytes
I/O Output:	64 bytes
Metoda konfiguracji	Via DIP switches or from application interface
Interfejs urządzenia:	Równoległy
