Anybus Compactcom Bacnetip 2 Port

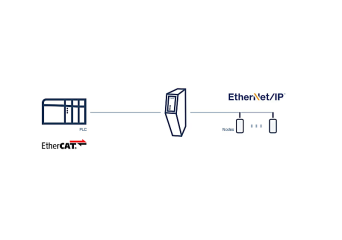

The Anybus Communicator EtherNet/IP Scanner to EtherCAT enables you to connect EtherNet/IP devices to EtherCAT control systems.
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionaleModel | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
ABC3361-A Ethernet/IP Scanner – EtherCAT slave | Out of stock | Garanție: | 4.675,00 RON 5.750,25 RON | Intră în cont pentru a vedea prețurile |
Powered by the award-winning NP40 network processor, it enables instant transfer of up to 1500 bytes (network dependent) between networks, totaling 3000 bytes.
Instant data transfer lets you take advantage of high-speed industrial networks.
The Communicator provides hardware-accelerated endian conversion (byte swap), saving processing time on the PLC.
Use the intuitive web-based user interface to easily configure the Communicator via the drag-and-drop functionality or to analyze live data and generate support packages.
Directly import EDS files in web user interface, eliminating the need to install third-party software.
Despite advanced security, human error often causes breaches. Our Communicator’s physical security switch can lock configurations and block web interface access, enhancing security.
The Communicator has forward-facing ports and is designed for IP20 and DIN-rail mounting, enabling you to install it with ease, close to connected devices, thereby reducing wiring requirements.
The user interface displays real-time connection status and I/O data mapping for easy troubleshooting. Easily generate a support file containing all the necessary information.
Thanks to carefully selected industrial components the Communicator operates reliably in harsh environments, ensuring uptime and longevity. Our confidence in quality is reflected in a 5-year warranty.
HMS maintains every part of the Communicator, including network updates, throughout the product’s lifecycle.
Identification & Status | |
---|---|
Brand | Anybus |
Country of Origin | Sweden |
Dual Usage | No |
Export Control Classification Number (ECCN) | 5A991.b.1 |
Model Code | 40-ETH-ETH-B |
Item Number | ABC3361-A |
Predecessor | AB7669-F |
HS Code | 8517620000 |
Certifications & Standards | |
CE | Yes |
UL | Yes |
UL Information | E214107: Ord.Loc UL 61010-1, CSA C22.2 No. 61010-1, UL 61010-2-201, CSA C22.2 No. 61010-2-201 |
KC | Yes |
EMC | Yes |
FCC | No |
Environment | EN 55016-2-3 Class A, EN 55032 Class A, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6 |
Waste Certification (WEEE) | Yes |
Protection Class IP | IP20 |
Recycle / Disposal | Yes |
RoHS Compliant | Yes |
Physical Features | |
Contains Battery | No |
Connectors / Input / Output | 2xRJ45; RJ45 Config port |
DIP & Rotary Switches | Security lock switch |
Push Buttons | Factory reset |
General | |
Net Width (mm) | 27 mm |
Net Height (mm) | 144 mm |
Net Depth (mm) | 98 mm |
Net Weight (g) | 150 g |
Mounting | DIN-rail (EN 50022 standard) |
Current Consumption Type Value at Vcc Nom (mA) | 90mA @ 24V DC (2.2W) |
Current Consumption Max value at Vcc nom (mA) | 125mA @ 24V DC (3W) |
Input Voltage (V) | 12-30V DC |
Power Connector | 3-pin, 5.08 Phoenix plug connector |
Reverse Polarity Protection | Yes |
Short Circuit Protection | Yes |
Isolation | Yes |
Operating Temperature | -25 °C to 70 °C |
Storage Temperature | -40 °C to 85 °C |
Housing Materials | PC ABS, UL 94 VO |
EtherCAT Features | |
EtherCAT Mode | Slave / SubDevice |
EtherCAT Supported Functionality | COE (Can Over EtherCAT); PDO, SDO; APRD, ARMW, APWR, BRD, BWR, FPRD, FPRW, FPWR, FRMW, LRD, LRW, LWR |
EtherCAT Bandwidth | 10/100 Mbit down to 100us cycle time |
EtherCAT Input Data Size | 1486 bytes |
EtherCAT Output Data Size | 1486 bytes |
EtherCAT Configuration File | ESI available |
EtherNet/IP Features | |
EtherNet/IP Mode | Scanner / Master |
EtherNet/IP Supported Functionality | EDS import; Endian conversion (byte swap); LiveList; DataExchangeControl; QoS; CT20 ODVA Conformance |
EtherNet/IP Bandwidth | 10/100MBit down to 1ms cycle time |
EtherNet/IP Input Data Size | 1500 bytes |
EtherNet/IP Output Data Size | 1500 bytes |
EtherNet/IP No. Of Adapters | 32 |
EtherNet/IP Configuration File | EDS available |
