Model | Disponibilitate | Garanție | Lista de dorințe | Prețul tău | Prețul tău | Cantitate articole Adăugare |
---|---|---|---|---|---|---|
ABC4090 Common ethernet - Common ethernet RECOMANDAT | În stoc | Garanție: | 4.646,00 RON 5.714,58 RON | Intră în cont pentru a vedea prețurile |
RECOMANDAT

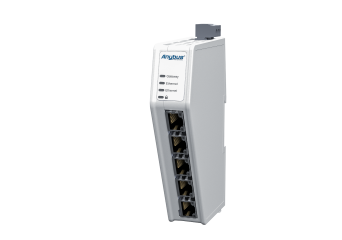

The Anybus Communicator Common Ethernet - Common Ethernet is an industrial protocol gateway that allows you to seamlessly transfer data between PLC control systems over EtherNet/IP, Modbus TCP, EtherCAT and PROFINET networks. The Anybus Communicator Common Ethernet – Common Ethernet is pre-loaded for PROFINET IO-device - EtherNet/IP adapter networks but by updating the firmware the device supports combinations of Ethernet/IP, EtherCAT, Modbus TCP, and PROFINET networks.
Anybus Communicators are designed to ensure reliable, secure, and high-speed data transfer between different industrial Ethernet and Fieldbus networks. Very easy to install and deploy, the stand-alone gateways enable transparent data exchange between PLCs allowing you to both bridge and integrate legacy equipment into modern high-performance networks with only minimal changes to the software.
Anybus Communicators are built using the award-winning and proven Anybus NP40 industrial network processor providing network conformance, high performance, and reliability. When connecting between PLCs on different networks, extremely fast data cycling is enabled with data transfer of up to 1500 bytes in each direction, meeting most current control application needs as well as supporting future demands.
Quick installation is ensured thanks to the intuitive configuration, easy-to-understand documentation, and smart hardware and housing design.
USECASE
Excellent performance
Easy to Use
Latest Security Features
Designed for industrial environments
Dimensions (L x W x H) with serial and power connector | 98 x 27 x 144 mm 3.85 x 1.06 x 5,67 in |
Weight | 150 grams, 0.33 lb |
Buttons and switches | Reset button and security switch |
LEDs | Gateway, Network 1 & Network 2 |
IP rating | IP20 |
Housing material | PC ABS, UL 94 VO |
Mounting | DIN rail (35 * 7,5/15) |
Operating temperature | -25 to 70° C, -13 to 158° F |
Storage temperature | -40 to 85° C, -40 to 185° F |
Relative humidity | 0-95% non condensing |
Installation altitude | Up to 2 000 m |
Input voltage | 12 - 30 VDC |
Current consumption | Typical: 160 mA @ 24V Max: 400 mA @ 12V |
Power connector | 3-pin plug with screw terminal |
Protection | Reverse voltage protection and short circuit protection |
Ports | 2+2 x Ethernet |
Isolation | Galvanic isolation |
Bitrate | 10/100 Mbit full duplex |
Connector | RJ45 |
Switch. | Dual port cut-through switch |
Mode | PROFINET IO-Device (slave) |
Class | A, B |
Communication channels | Real Time Channel (RT) |
Input data size | 1 024 bytes |
Output data size | 1 024 bytes |
Minimum cycle time | 1 ms |
Max number of connections | 1 IO Controller Application Relationship + 2 Device Access Application Relationships |
Netload class | Class III |
I&M records | Manufacturer data (I&M0), Tag information (I&M1), Date/Time (I&M2), Description (I&M3) |
SNMP | Available |
GSDML File | Available |
Certification | Pending |
Mode | Adapter (slave) |
Messages | Implicit and explicit |
Max no of scanner connections | 1 input/output (exclusive owner) 3 listen only or input only |
Input data size | 1 448 bytes (with large forward open) |
Output data size | 1 448 bytes (with large forward open) |
Network redundancy | Device Level Ring (DLR), beacon-based |
Quick connect | Class B |
Certification | Pending |
Minimum cycle time | 1 ms for class 1 connections, 100 ms for class 3 connections |
EDS File | Available |
Mode | EtherCAT slave according to IEC 61158 Type 12 (ETG.1000) |
Addressing modes | Logical, node, and position |
Synchronization modes | Free run |
Input data size | 1 486 bytes |
Output data size | 1 486 bytes |
Network redundancy | Device Level Ring (DLR), beacon-based |
Minimum cycle time | 100 μs |
Features | Supports CANopen over EtherCAT (CoE) |
ESI File | Available |
Mode | Server |
Max number of connections | 4 |
Input data size | 1 500 bytes |
Output data size | 1 500 bytes |
UL | CULUSfile number E214107 |
CE | 2014/30/EU |
KC | R-R-ABJ-Communicator |
EMC |
EN 61000-6-2 |
Environment |
IEC 60068-2-1 Ab |
Vibration and shock |
IEC 60068-2-27 |
Waste certification | WEE |
Configuration software | Web based configuration |
Configuration ports | Dedicated 10/100 Mbit RJ45 Ethernet configuration port and Ethernet ports |
Secure boot | Ensures software authenticity |
Security switch | Physical switch that enable/disable access to the web based configuration interface |
Content | Gateway, power connector, start-up guide, compliance information sheet |
Box material | Cardboard |
MTBF | > 1500000 h, Telcordia Method I Case 3 at 30° C |
