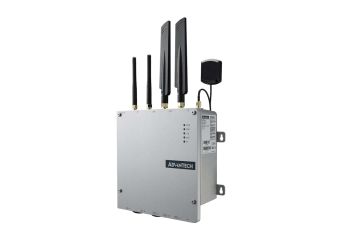

UNO-430
All-Around IP69K/IP68 Waterproof Edge Intelligence Gateway with both M.2 3052/3042 key B, M.2 2230 key E, GPS support, TPM 2.0
- Intel® Atom E3950 Quad-core processor with 8G DDR3L memory
- Reserve M.2 3052/3042 key B, M.2 2230 key E for Wi-Fi, LTE & GPS expansion
- 2 x GbE, 2 x RS-422/485 (isolated) ,1 x RS-232 (console) and hardware security TPM2.0
- IP69K and IP68-rated protection from water and dust
- -40~70°C wide operating temp design for harsh environment
- Easy maintenance with front door and cable gland design saves special waterproof cable wiring effort
- Bi-direction wall mount support
- RED Compliance
Produs epuizat
Livrare gratuita de la 500 RON
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionaleDescriere
Advantech UNO-430 is a highly ruggedized gateway featured with IP69K/68 Water proof and -40~70°C wide operating temp, which is suitable for general outdoor and indoor application to withstand harsh environment.
Specificație tehnică
| Environment | |
| Ingress Protection | All -around IP69K /68 |
| Operating Temperature | -40-70°C (-40-158°F ) |
| Relative Humidity | 10-95%RH (non -condensing ) |
| Shock Protection | 50G ,half sine |
| Storage Temperature | -40-85°C (-40-185°F ) |
| Vibration Protection | 2Grms ,random |
| Hardware | |
| Certification | CB ,UL ,CE ,FCC Class A |
| CPU | Intel® ATOM E3950 1.6GHzQuad -Core |
| Graphics Engine | Intel® HD Graphics |
| Hardware Security | TPM 2.0 |
| Memory | 1x SO -DIMM with 8GB DDR3L 1600MHz |
| OS Support | Microsoft® Windows 102019LTSC ,Linux |
| Power Input | 10-36VDC |
| Storage | 1x M.2 B key |
| I /O Interface | |
| Displays | 1x DP |
| Expansion | 1x M.2 B key ,1x M.2 E key |
| LAN Ports | 2x 10/100/1000Mbps |
| Power Connector | 1x 3-Pin Terminal Block |
| Serial Ports | 2x RS -232/422/485,1x RS -232(Console ) |
| USB Ports | 2x Internal USB |
| Cable Gland | 2x M32 cable gland for Ethernet cable (cable size range OD 5-6.6mm /0.19-0.25in ) 4x M12 cable gland for serial port and power cable (cable size range OD 4.5-6.5mm /0.17~0.25in ) |
| Mechanical | |
| Dimension (W x H x D ) | 200x 68x 200mm |
| Enclosure | Aluminum housing |
| Weight (Net ) | 3kg |
