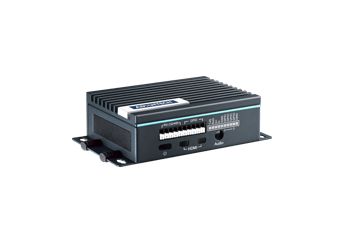

UNO-220

Industrial Raspberry Pi 4 HAT Gateway Kit

Producător: Advantech

Protect your Raspberry Pi device from dust and temperature extremes.
Industrial-grade gateway kit provides Raspberry Pi-ready solutions for rapid prototyping.
Designed for Raspberry Pi single-board computers - Develop unique IoT applications
UNO-220 industrial-grade chassis transforms RPi 4 into a ruggedized gateway for shopfloor environment
Industrial grade I/O board for RS-232/485 and GPIO extension
Build IoT Applications with the UNO-220 Industrial Kit for Raspberry Pi 4
Provide optimum protection for Raspberry Pi and 2 years warranty

Produs epuizat

Livrare gratuita de la 500 RON

Promocja cenowa na model HDR-15-5

Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

UNO-220

Descriere

Featuring a system-image OS equipped micro SD card, an RPi 4 HAT I/O board, additional RS-232/485 GPIOs, and an RTC battery backup for precise time keeping; UNO-220 is designed for customers using Raspberry Pi 4 (RPi 4) single-board computers (SBCs) in IoT applications.

Specificație tehnică

General	Certification	CE, FCC
	Dimensions	100 x 70 x 32 mm
	Form Factor	Micro
	Enclosure	Aluminum housing
	Weight	0.5 kg
	Power Consumption	15 W
	OS Support	AdvRaspbian
System Hardware	Hardware Security	TPM 2.0 (available upon request)
	Storage	1 x Micro SD slot (dummy) (internal 8 GB SD card interchangeable with Raspberry Pi 4)
I/O Interfaces	Serial Ports	1 x RS232/485 (5-pin terminal block), automatic direction control, 300 ~ 115.2k bps
	GPIO	GPI 0-3: VIH: 2 ~ 5V VIL: 0 ~ 0.8V GPO 0-3: 0 ~ 5V
Environment	Operating Temperature	0 - 50°C
	Storage Temperature	20 ~ 60 °C
	Relative Humidity	10 ~ 95% RH @ 40 °C, non-condensing
	Ingress Protection	IP40
