BB-LTEMAK5

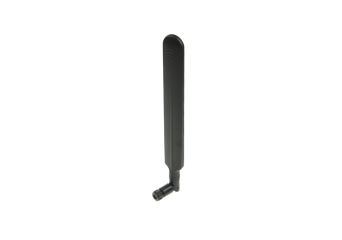

BB-LTEMAK5 - Antena LTE patyczkowa 5dBi

Producător: Advantech
Producător: Advantech
  • Technology: GSM/UMTS/LTE/WIFI
  • Frequency bands:
    700/800/900/960/1800/1900 MHz
    2100/2300/2400/2500/2600/2700 MHz
  • Gain: 5 dBi
  • VSWR: <2.0:1
  • Impedance: 50 Ohm
  • Directivity: Omnidirectional
  • Beam angle: Attached graphs below
  • Polarization: Linear
  • Maximum input power: 10 W
  • Dimensions: 223 x 24 mm
  • Weight: 38.67 g
  • Operating temperature: -10 to +50 °C
  • Execution: External
  • Method of attachment: Connector Mount
  • Connector type: SMA(m)
Preț de la 34,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Modele

Descriere

Omnidirectional LTE antenna

Omnidirectional antenna for GSM/UMTS/LTE technologies. The antenna operates in bands 690-2700 MHz. It is suited for modems and routers and equipped with an SMA (m) connector.

Specifications connector SMA:

These are high-frequency connectors with screw connection mechanism. The characteristic impedance of the connector is 50 Ohm and the operating frequency range up to 18 GHz. There are two types of SMA connectors, namely SMA and RP-SMA. Most of the current cellular routers are equipped with SMA connectors for connecting Wi-Fi / 2G / 3G / LTE / GPS antennas terminated by proticates. It is also used as a standard connector in RF measuring technology. They are characterized by high reliability, durability, high mechanical stability and optimal electrical properties.
