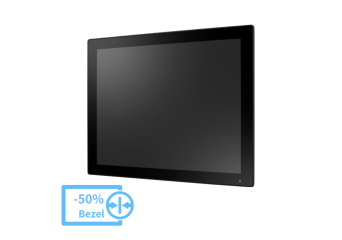

PPC-317S RPL

17" fanless panel PC with 13th gen Intel Core processors (i7/i5/i3)

Producător: Advantech

Built-in Intel Core i3/i5/i7 13th gen.
True-flat touchscreen with Industrial-grade LCD panel
High-performance, fanless 13th gen Intel Core processors
Slim Compact, fanless design with aluminum alloy enclosure
IP66-rated front panel
Supports dual displays (1x external DP), iDoor and PCI or PCIe
1x M.2 M Key 2242/2280 (SATA or NVME PCIe x4) for storage, support SATA RAID 0,1
2x 2500BASE-T Ethernet Supports Time-Sensitive Network(TSN) technology
Supports VESA 100
Support TPM2.0 hardware security
No RAM, storage, power supply and operating system included

Produs epuizat

Livrare gratuita de la 500 RON

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

PPC-317S RPL

PPC-317S RPL
Processor	Intel Core i3/i5/i7 13th gen.
RAM	Up to 32 GB SODDR5
VGA (DSub)	-
HDMI	-
DP	1
Audio	Line out
Gigabit Ethernet	2x 2.5 GbE LAN
2,5" HDD	1
Slot mSATA	-
Slot M.2	1x M.2 M Key 2242/2280 (SATA or NVME PCIe x 4), support SATA RAID 0,1 1x M.2 B key 2242 or 3042/3052 (SATA, PCIe X1 ,USB 3.0 & SIM slot) 1x M.2 E Key 2230 (PCIe & USB 2.0)
USB 3.2	3
USB 2.0	1
RS-232/422/485	2
Slot miniPCIe	-
Expansions	1x iDoor (optional) 1x PCI or PCIe x1 (optional)
TPM	Supports TPM 2.0
Display	17" TFT LCD (LED backlight)
Resolution	1280 x 1024
Contrast	1000
Luminance	250
Touch type	5 wire resistive touch or Mlti-touch projected capacitive
Conrtoller	USB interface
Front Panel Protection	IP66 compliant
Working temp.	-10°C ~ +50°C
