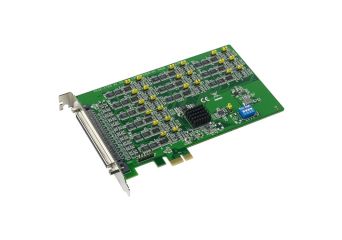

PCIE-1753

96-ch Digital I/O PCI Express Card

Producător: Advantech
Producător: Advantech
  • Fully compatible with PCI-1753
  • Up to 96 TTL digital I/O lines
  • Emulates mode 0 of 8255 PPI
  • Supports both dry and wet contact
  • Interrupt handling capability
  • Output status read-back
  • Supports input data pattern match and change of state functions
  • Keep I/O settings and output status after hot reset
  • Buffered circuits for higher driving capacity than the 8255
  • High-density 100-pin SCSI connector
Preț de la 1.092,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Modele

Accesorii

Descriere

The PCIE-1753 is a 96-bit digital I/O card for the PCI bus. The card emulates mode 0 of the 8255 PPI chip, but the buffered circuits offer higher driving capability than the 8255. The 96 I/O lines are divided into twelve 8-bit I/O ports. Users can configure each port as input or output via software.

  • Fully compatible with PCI-1753
  • Up to 96 TTL digital I/O lines
  • Emulates mode 0 of 8255 PPI
  • Supports both dry and wet contact
  • Interrupt handling capability
  • Output status read-back
  • Supports input data pattern match and change of state functions
  • Keep I/O settings and output status after hot reset
  • Buffered circuits for higher driving capacity than the 8255
  • High-density 100-pin SCSI connector
