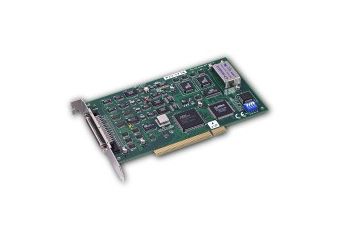

PCI-1716

250 kS/s, 16-bit, 16-ch Multifunction PCI Card

Producător: Advantech
Producător: Advantech
  • 16 single-ended or 8 differential or a combination of analog inputs
  • 16-bit A/D converter, with up to 250 kHz sampling rate
  • Onboard FIFO memory (1,024 samples)
  • 2 analog output channels
  • 16-ch digital input and 16-ch digital output
  • Auto-calibration
  • PCI-Bus mastering data transfer
  • Onboard programmable counter
  • BoardID™ switch
Preț de la 2.204,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 3 model

Promocja cenowa na model HDR-15-5

Modele

Accesorii

Descriere

PCI-1716 and PCI-1716L are powerful high-resolution multifunction cards for the PCI bus. They feature a 250 kS/s 16-bit A/D converter, and an onboard 1K sample FIFO buffer for A/D. The cards can also have up to sixteen single-ended or eight differential A/D input channels or a combination of these; two 16-bit D/A output channels, 16 digital input/output channels, and one 10 MHz 16-bit counter channel. PCI-1716 and PCI-1716L provide specific functions for different user requirements.

  • 16 single-ended or 8 differential or a combination of analog inputs
  • 16-bit A/D converter, with up to 250 kHz sampling rate
  • Onboard FIFO memory (1,024 samples)
  • 2 analog output channels
  • 16-ch digital input and 16-ch digital output
  • Auto-calibration
  • PCI-Bus mastering data transfer
  • Onboard programmable counter
  • BoardID™ switch
