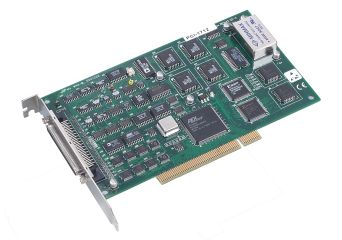

PCI-1712

PCI-1712 and PCI-1712L are powerful high-speed multifunction cards for the PCI bus. They feature a 1 MHz 12-bit A/D converter, an onboard FIFO buffer (storing up to 1024 samples for A/D, and up to 32 K samples for D/A conversion). The PCI-1712 cards provide a total of up to 16 single-ended or 8 differential A/D input channels or a mixed combination, two 12-bit D/A output channels, 16 digital input/output channels, and three 10 MHz 16-bit multifunction counter channels. PCI-1712L is a low-cost version without analog output.

• 16 single-ended or 8 differential or a combination of analog inputs
• 12-bit A/D converter, with up to 1 MHz sampling rate
• Two 12-bit analog output channels with continuous waveform output function
• 16-ch digital input and 16-ch digital output
• Three 16-bit programmable multifunction counter/timers on 10 MHz
• Programmable gain
• Automatic channel/gain scanning
• Onboard FIFO memory (AI: 1,024 samples AO: 32,768 samples)
• Auto-calibration (AI/AO)
• PCI-Bus mastering data transfer
• Pre-, post-, about- and delay-trigger data acquisition modes for analog input channels
• Flexible triggering and clocking capabilities
