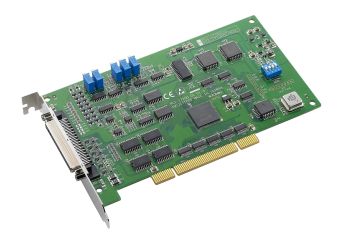

PCI-1710

100 kS/s, 12-bit, 16-ch Universal Multifunction PCI Card

Producător: Advantech
Producător: Advantech
  • 16-ch single-ended or 8-ch differential or a combination of analog input
  • 12-bit A/D converter, with up to 100 kHz sampling rate
  • Onboard programmable counter
  • Two 12-bit analog output channels
  • 16-ch digital input and 16-ch digital output
  • Automatic channel/gain scanning
  • Onboard FIFO memory (4,096 samples)
  • Programmable gain
  • BoardID™ switch
Preț de la 1.823,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 3 model

Promocja cenowa na model HDR-15-5

Modele

Accesorii

Descriere

The PCI-1710U Series are multifunction cards for the PCI bus. Their advanced circuit design provides higher quality and more functions, including the five most desired measurement and control functions: 12-bit A/D conversion, D/A conversion, digital input, digital output, and counter/timer.

  • 16-ch single-ended or 8-ch differential or a combination of analog input
  • 12-bit A/D converter, with up to 100 kHz sampling rate
  • Onboard programmable counter
  • Two 12-bit analog output channels
  • 16-ch digital input and 16-ch digital output
  • Automatic channel/gain scanning
  • Onboard FIFO memory (4,096 samples)
  • Programmable gain
  • BoardID™ switch
