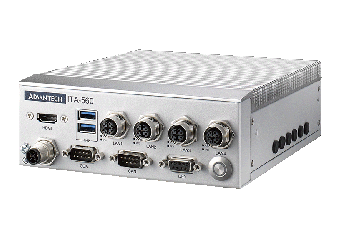

ITA-560

Compact Railway Computer with NVIDIA® Jetson Orin™ Nano / NX for AI Inference, EN 50155

Producător: Advantech

Computer for railway applications
Fanless design for AI inference
Built-in NVIDIA® Jetson Orin™ NX 16GB or Orin™ Nano 8GB
Compliant with railway standards EN 50155 OT1 and EN 50121-3-2 EMC
M12 connectors resistant to vibration and shock
Available ports: 4 x M12 GbLAN, HDMI, 2 x USB 3.0, 1 x CAN (DB9), 1 x RS-232/422/485, DIO (DB9)
1 x Mini PCIe, 1 x M.2 (E-key), 1 x M.2 (M-key), and 1 x M.2 (B-key) for easy expansion
Pre-installed Linux Ubuntu 20.04 operating system

Preț de la 14.698,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele
Descriere
Specificație tehnică
Descarca documentatie
Produse recomandate

ITA-560

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
ITA-560NX-LOA1 ITA-560 NV Jetson Orin NX_16G AI computing 24V	Out of stock	Garanție:		14.698,00 RON 18.078,54 RON Intră în cont pentru a vedea prețurile	Intră în cont pentru a vedea prețurile	buc.

ITA-560NX-LOA1

ITA-560 NV Jetson Orin NX_16G AI computing 24V

Disponibilitate: Out of stock

Preț net:

14.698,00 RON

Intră în cont pentru a vedea prețurile

Descriere

The ITA-560 computer is a fanless industrial computer designed for AI analytics applications, particularly in intelligent transportation systems. It is equipped with an NVIDIA® Jetson Orin™ NX or Orin™ Nano module, offering advanced data processing capabilities.

Example applications:

Behavioral analytics: detecting aggressive behavior, fall detection, suspicious movement,
Vandalism detection,
Facial recognition,
Object recognition (abandoned luggage, firearms, etc.),
People counting, studying train usage patterns,
Smoke and fire detection,
Anomaly detection.

Specificație tehnică

Function	Description
System
Processor	NVIDIA® Jetson Orin™ NX: 8-core Arm® Cortex®-A78AE v8.2 64-bit NVIDIA® Jetson Orin™ Nano: 6-core Arm® Cortex®-A78AE v8.2 64-bit
GPU	NVIDIA® Ampere GPU 1024 CUDA cores and 32 Tensor cores Orin NX: Up to 100 (Sparse) and 50 (Dense) INT8 TOPs Orin Nano: Up to 40 (Sparse) and 20 (Dense) INT8 TOPs
Memory	Orin NX: 16 GB 128-bit LPDDR5 Orin Nano: 8 GB 128-bit LPDDR5
External I/O
Display	1 x HDMI
CAN	1 x CAN, DB9
USB	2 x USB 3.0 type A
Serial Port	1 x RS-232/RS-422/RS-485, DB9
DI/O	1 x 8bit (4in/4out), DB9
Internal I/O (Pin Header)
OTG USB	1 x Micro USB
Serial Port	1 x RS-232/RS-422/RS-485, DB9 (optional)
Ethernet
Controller	Intel® I210-IT
Interface	10/100/1000 Mbps
Connector	4 x M12 (X-coded)
Expansion
Mini PCIe	1 x Mini PCIe slot
M.2	1 x M.2 (B-key) 3052 (5G/LTE) 1 x M.2 (E-key) 2230 (Wi-Fi/Bluetooth) 1 x M.2 (M-key) 2280 (storage)
SIM	1 x Nano SIM card slot
Antenna	6
Power
Input Range	24/110VDC
Connector	1 x M12 (S-coded)
Environmental
Operating Temperature	-25 ~ 55 °C
Storage Temperature	-40 ~ 85 °C
Humidity	5% ~ 95% @ 40 °C (non-condensing)
Mechanical
Dimensions (W x H x D)	160 x 60 x 190 mm
Mounting
Mount Options	Wall mount
Certification
EMC	CE, FCC, BSMI, CCC
Safety	CE, FCC, BSMI, CCC
EN50155 Compliance	-25 ~ 55 °C (EN 50155 OT1), IEC 61373, Class S2, Class C1, EN 50121-3-2
