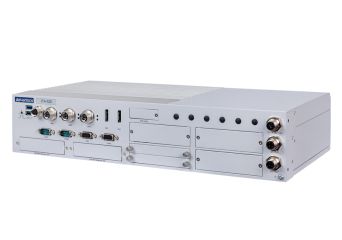

ITA-520
11th Gen Intel® Core™ H-Series platform EN50155 Fanless Computer; Compliant for Rolling Stock Applications
Producător: Advantech
Producător: Advantech
- 11th Gen Intel® Core™ H-Series platform with RM590E
- SuperCap-based power backup module for power failure
- Featured Time-Sensitive Network technology
- Virtualization ability for multi tasks acceptable
- Support advanced 5G and Wi-Fi 6 wireless connectivity
- LAN bypass for redundant connectivity to communicate with other devices
- Compliant with EN 50155 OT4
- Wide range 24 - 110Vdc power input, compliant with EN 50155
- Support variety of communication modules by iDoor technology
Preț de la 12.272,00 RON Net
Preț prea mare? Autentificați-vă și cumpărați mai ieftin
Produs epuizat
Transport gratuit pentru orice comandă, oriunde în România
Promocja cenowa na model HDR-15-5
Produs destinat exclusiv utilizării profesionaleModele
-
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareITA-520-W5A1P/N for ITA-520-W5A1, i5-11550HE,8GBOut of stock Garanție: 12.272,00 RON15.094,56 RONIntră în cont pentru a vedea prețurile ITA-520-W5A1P/N for ITA-520-W5A1, i5-11550HE,8GBDisponibilitate: Out of stockPreț net:12.272,00 RON -
Model Disponibilitate Garanție Lista de dorințe Prețul tăuPrețul tău Cantitate articole AdăugareITA-520-W7A1P/N for ITA-520-W7A1, i7-11850HE,16GBOut of stock Garanție: 16.629,00 RON20.453,67 RONIntră în cont pentru a vedea prețurile ITA-520-W7A1P/N for ITA-520-W7A1, i7-11850HE,16GBDisponibilitate: Out of stockPreț net:16.629,00 RON
Descriere
The ITA-520 is a state-of-the-art fanless industrial computer designed specifically for rolling stock applications. With advanced technologies such as 5G, Wi-Fi 6 and Time-Sensitive Networking, it is ideally suited for demanding transportation applications where reliability and business continuity are key. It offers flexibility in configuration with iDoor modules, while its wide supply voltage range and EN 50155 compliance ensure seamless operation in harsh railroad environments.
Specificație tehnică
| ITA-520-W5A1 | ITA-520-W7A1 | |
| CPU | Intel Core i5-11500HE | Intel Core i7-11850HE |
| Memory | Built-in 8GB RAM Available expansion up to 32GB |
Built-in 16GB RAM Available expansion up to 32GB |
| VGA (DSub) | - | |
| HDMI | - | |
| DisplayPort | 2 | |
| Audio | 1x Line-out, 1x Mic-in | |
| Gigabit Ethernet | 3x 2.5 GbE LAN (M12 X-Coded(F)) | |
| Slot 2,5" HDD | 2x 2.5" 7mm, support RAID 0/1/5/10 (easy swap-tray) | |
| Slot mSATA | 1 | |
| Slot M.2 | 2x M.2 3042/3052 B+M Key 1x M.2 2230 A+E Key |
|
| Slot miniPCIe | 2x full-size | |
| SIM card | 4 x micro SIM slot, each M.2 slot supports dual micro SIM cards | |
| PCIe | 1 x PCIex16 thru. MCIO connector | |
| DIO | 4-bit DI/ 4-bit DO with 2KV Isolation | |
| USB 3.2 | 4 | |
| USB 2.0 | 1x M12 A-Coded (F) | |
| RS-232 | - | |
| RS-232/422/485 | 2x with 2KV Isolation | |
| TPM | TPM 2.0 | |
| IP Rating | IP40 | |
| Working temperature | -40 ~ 70°C | |
Descarca documentatie
