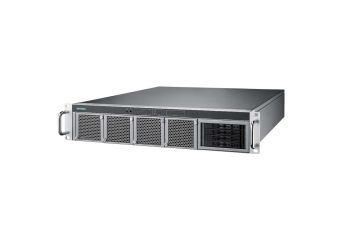

ECU-579

IEC-61850-3 Certified Power Automation Server Based on Intel® Xeon® Processor Scalable Family

Producător: Advantech
Producător: Advantech
  • 2U rackmount server with wide operating temperature
  • Suppports 2nd Gen. Intel® Xeon® Scalable Processors
  • 12 x DIMM sockets supporting up to 768GB DDR4 SDRAM
  • Up to 2 x hot-swappable PSUs and 4 x hot-swappable fans for redundancy
  • Up to 4 x 2.5" hot-swappable HDD/SSD, 1 x M.2 2280 SATA/PCIe SSD
  • Up to 2 x PCIe x16 Gen3 slots, PCIe x8 Gen3 slots, PCIe x4 Gen3 slots
  • IPMI 2.0-compliant management with reliability and security enhancements
  • Optional TPM 2.0 module
Produs epuizat

Livrare gratuita de la 500 RON

Promocja cenowa na model HDR-15-5

Descriere

Specificație tehnică

  ECU-579
Processor Compatible with Intel® Xeon® Processor
Scalable Family
RAM up to 768GB DDR4 SDRAM
DVI-D 2
VGA 1
Audio -
Gigabit Ethernet 4
2,5" HDD 4 x 2.5" hot-swappable SATA HDD/SSD
(Intel® RST RAID 0,1,5,10)
mSATA -
M.2 1 x M.2 2280 SATA/PCIe NVMe SSD
USB 3.0 3
Serial ports -
PCIe x16 2x Slot Gen3 low profile
PCIe x8 1x Slot Gen3 low profile
PCIe x4 1x Slot Gen3 low profile
miniPCIe
TPM Optional TPM 2.0
Working temp. -20°C ~ +60°C
