main product photo

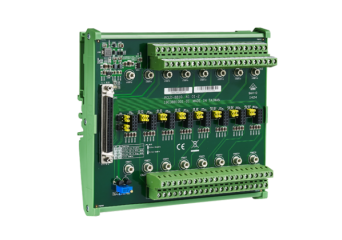

PCLD-8810

68-pin SCSI DIN-rail Wiring Board with CJC

Producător: Advantech
Producător: Advantech
  • 16-single-ended or 8 differential AI inputs, programmable
  • On-bard CJC circuit for direct thermocouple measurement
  • Reserved space for signal-conditioning circuit such as PCLD-8811
  • Industrial-grade screw-clamp terminal blocks for heavy-duty and reliable connections
  • DIN-rail mounting case for easy mounting
  • Supports PCI-1710U/UL/HGU, PCI-1711U/UL, PCI-1716/L, PCI-1741U, PCI-1742U, PCIE-1810, PCIE-1816/H
Preț de la 762,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

PCLD-8810 - Terminal zaciskowy na szynę DIN do kart PCIE-1810

PCLD-8810

Modele

Descriere

The PCLD-8810I is designed to match multifunction cards with 68-pin SCSI-II connectors, such as the PCI-1710/1710L/1710HG/1710HGL/1711/1711L/1716/1716L/1741U/1742U cards. PCLD-8810E is designed to match multifunction cards with 68-pin SCSI-II connectors, such as the PCIE-1810/1816/1816H cards. This screw-terminal board also includes cold junction sensing circuitry that allows direct measurements from thermocouple transducers. Together with software compensation and linearization, every thermocouple type can be accommodated.
Due to its special PCB layout, you can install the PCLD-8811 to construct your own signal-conditioning circuits. The PCLD-8811 is an 8-order low-pass filter that can be programmable by jumper.

  • 16-single-ended or 8 differential AI inputs, programmable
  • On-bard CJC circuit for direct thermocouple measurement
  • Reserved space for signal-conditioning circuit such as PCLD-8811
  • Industrial-grade screw-clamp terminal blocks for heavy-duty and reliable connections
  • DIN-rail mounting case for easy mounting
  • Supports PCI-1710U/UL/HGU, PCI-1711U/UL, PCI-1716/L, PCI-1741U, PCI-1742U, PCIE-1810, PCIE-1816/H
