BB-LTEM58

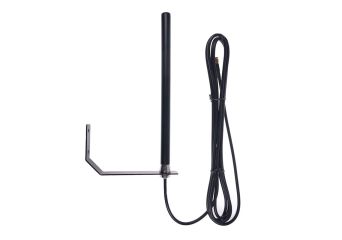

The antenna is an omnidirectional, multi-band solution designed for GSM/UMTS/LTE technologies. It operates across the 700/800/850/900/1700/1800/1900/2100/2300/2500/2600 MHz frequency bands. Thanks to its robust and precise construction, the antenna offers excellent weather resistance, making it ideal for outdoor installations. It is supplied with a 3-meter .195 coaxial cable terminated with an SMA (male) connector. The package also includes a mounting bracket that ensures secure and stable installation.

The .195 coaxial cable is designed for connectors compatible with cables featuring an outer diameter of 4.95 mm. It is primarily used within the 0–6 GHz frequency range and features a characteristic impedance of 50 Ω. Typical operating temperature ranges from −40 °C to +85 °C, and the velocity factor is 0.79. The .195 cable is commonly used in metrology, wireless communication systems, the automotive industry, as well as in VHF and UHF applications. It is also frequently used for assembling cable adaptors with connectors such as BNC, N, SMA and TNC. Specialized outdoor variants are available, featuring UV-resistant materials and enhanced durability for extreme environments.

MA connectors are high-frequency RF connectors with a threaded coupling mechanism. They feature a characteristic impedance of 50 Ohm and support operating frequencies up to 18 GHz. There are two variants: SMA and RP-SMA. Most modern cellular routers use SMA connectors for attaching Wi-Fi, 2G, 3G, LTE and GPS antennas. SMA connectors are also widely used in RF measurement equipment. They offer high reliability, mechanical robustness and excellent electrical performance.
