BB-856-15731 - iMcV-MediaLinX

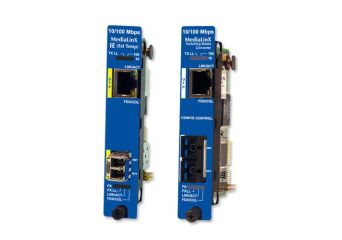

The IMC-750/751 series are slide-in module Ethernet-to-fiber media converters for the IMC-7xx chassis, which support hot-swappable and easy installation. They allow network operators to incorporate multiple fiber types and wavelengths within a network. They can be monitored and controlled via a central site with the IMC-710 SNMP management module by iView2, Telnet, or CLI while installed in a IMC-71x series chassis. Link Fault Pass Through (LFPT) is a diagnostic feature that can enable or disable links to assist end users in troubleshooting a failed segment and configuration control to retain the latest configuration regardless of how the initial configuration was set up. The IMC-750 series can convert a 10/100 ~ 100Mbps copper-to-fiber media rate to auto-negotiation functionality on the twisted pair port for operation, and can fix it at 100Mbps copper-to-fiber with the IMC-751 series.

• Variety of choices: multi-mode, single-mode, and single-strand fiber including SFP form factor
• Modular, hot-swappable architecture reduces operational costs associated with product installation, upgrades, and maintenance
• Provides modules with SFP transceivers that support extended operating temperature
• SNMP manageable
• Supports configuration control
• Supports Link Fault Pass Through (LFPT)
