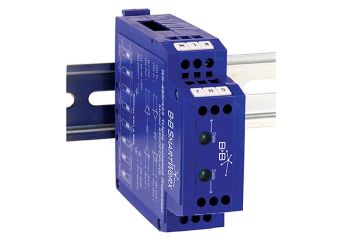

BB-485OPDR-HS

Model BB-485OPDR-HS is a high speed, optically isolated RS-422/485 repeater that supports data rates up to 1.5 Mbps, making it suitable for use in fieldbus systems such as Profibus. Isolation - Model BB-485OPDR-HS provides 2 kV digital isolation with 8 kV air ESD protection and 600 W transient voltage suppression on the data lines. Range Extension - Model BB-485OPDR-HS can be used to extend the range of a network up to 1.2 km (4000 ft), depending on data rates, and to add additional nodes. 2-wire RS-485, 4-wire RS-485 and RS-422 are supported. Data signals and the power inputs connect to built-in terminal blocks. Power - The repeater operates on externally sourced 10 to 30 VDC power (power supply is required, not included, sold separately). Enclosure - The enclosure has a DIN rail mount enclosure that is designed to easily fit on standard 35mm DIN rail.

• RS-422/485 Repeator
• 2 kV Isolation, IEC ESD protections
• High Speed - 1.5 Mbps
• -40 to +80°C Wide Operating Temperature
• DIN Rail Mount (panel mount with optional brackets)
• Suitable for fieldbus systems such as Profibus
• 10 - 30 VDC Power supply required, not included, sold separately
