ARK-1124

Intel® Celeron™ N3350 / Intel Atom™ E3940 IoT Gateway Modular Fanless Box PC

Producător: Advantech
Producător: Advantech
  • Intel Celeron N3350 Dual Core SoC or Intel Atom E3940 Quad Core SoC
  • Dual HDMI independent display support 4k2k resolution
  • VGA Display/RS-232/422/485/USB 3.0
  • Full-size miniPCIe with SIM holder for communication module
  • M.2 E Key for WIFI module
  • 2.5" SATA III SSD/HDD, mSAT, half-size mSATa
  • -20 ~ 60 °C extended operating temperature
  • 12V lockable DC jack power input
  • Optional 12~24V power module (Dual Layer)
  • Advantech iDoor module compatible (Dual Layer)
  • Advantech WISE-DeviceOn support
Preț de la 2.673,00 RON Net

Preț prea mare? Autentificați-vă și cumpărați mai ieftin

În stoc

Plasați comanda până la ora 12:00, iar coletul va fi expediat în aceeași zi

Livrare gratuita de la 500 RON

Vezi 3 model

Promocja cenowa na model HDR-15-5

Modele

Accesorii

Descriere

ARK-1124H

  • Intel Atom E3940 Quad Core SoC
  • Dual HDMI independent display support 4k2k resolution
  • 1 x Full-size miniPCIe with SIM holder for communication module
  • 1 x M.2 E Key for WIFI module
  • 1 x 2.5" SATA III SSD/HDD and 1 x mSATA
  • TPM built in for well security
  • -20 ~ 60 °C extended operating temperature
  • 12V lockable DC jack power input
  • Optional 12~24V power module (Dual Layer)
  • Advantech iDoor module compatible (Dual Layer)
  • Advantech WISE-DeviceOn support

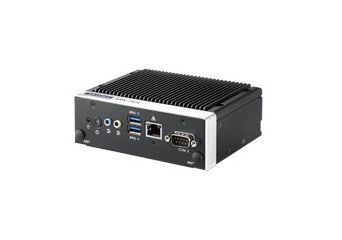

ARK-1124U

  • Intel Celeron N3350 Dual Core SoC
  • VGA Display/2x RS-232/422/485/4x USB 3.0
  • 1 x Full-size miniPCIe with SIM holder for communication module
  • 1x M.2 E-key for WIFI module
  • -20 ~ 60 °C extended operating temperature
  • TPM 2.0 default built-in
  • 12V lockable DC jack power input
  • Optional 12~24V power module (Dual Layer)
  • Advantech iDoor module compatible (Dual Layer)
  • Advantech WISE-DeviceOn support

ARK-1124C

  • Intel® Celeron™ N3350 Dual Core SoC
  • VGA Display, 4 x RS-232/422/485, 2 x USB3.0
  • 1 x full-size miniPCIe for communication module
  • 1 x 2.5" SATA III drive bay and 1 x half-size mSATA
  • -20 ~ 60 °C extended operating temperature
  • 12V lockable DC jack power input
  • Optional 12~24V power module (Dual Layer)
  • Advantech iDoor module compatible (Dual Layer)
  • Advantech WISE-DeviceOn support


Specificație tehnică

  ARK-1124C ARK-1124H ARK-1124U
CPU Celeron N3350, Dual Core Atom E3940, Quad Core Celeron N3350, Dual Core
Memory ut to 8 GB DDR3L up to 8 GB DDR3L up to 8 GB DDR3L
VGA (DSub) 1 - 1
HDMI

-

2 -
Audio Line in, Line out Line in, Line out Line in, Line out
Gigabit Ethernet 1 2 2
Slot 2,5" HDD 1 (max. 9.5 mm) 1 (max. 9.5 mm) 1 (max. 9.5 mm)
Slot mSATA 1 (half-size) 1 (half-size) -
Slot M.2 - 1 x M.2 E-key for WIFI 1 x M.2 E-key for WIFI
USB 3.0 2 4 4
USB 2.0 0 0 0
RS-232 - - -
RS-232/422/485 4 1 2
Slot miniPCIe 1 half-size (mSATA)
1 full-size

1 half-size (mSATA)
1 full-size + nanoSIM

1 full size + SIM

TPM - - YES
Working temperature -20°C ~ +60°C -20°C ~ +60°C -20°C ~ +60°C
