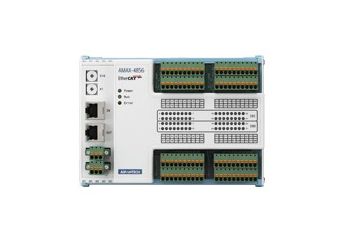

AMAX-4856

32-ch Isolated Digital Input and 32-ch Isolated Digital Output EtherCAT Remote I/O Module

Producător: Advantech

Suitable for EtherCAT networks
32-ch digital input and 32-ch digital output with 2,500 VDC isolation
Wide input voltage range (10 ~ 30 VDC)
Wide output voltage range (5 ~ 40 VDC) and high output current (350 mA/ch)
Quick removable European type connector
LED indicators for I/O status
Supports EtherCAT Distributed Clock (DC) mode and SyncManager mode
Two Rotary switches for up to 256 slave IDs

Produs epuizat

Livrare gratuita de la 500 RON

Vezi 1 model

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Modele
Descriere
Descarca documentatie
Produse recomandate

AMAX-4856

Modele

Model	Disponibilitate	Garanție	Lista de dorințe	Prețul tău	Prețul tău	Cantitate articole Adăugare
AMAX-4856-B 32-ch DI&32-ch DO EtherCAT Remote I/O Module	Out of stock	Garanție:		0,00 RON -	-

AMAX-4856-B

32-ch DI&32-ch DO EtherCAT Remote I/O Module

Disponibilitate: Out of stock

Preț net:

Descriere

AMAX-4856 is an industrial EtherCAT slave module equipped with the EtherCAT protocol. Its compact size and DIN-rail mount kit can install easily in a cabinet. Euro type pluggable terminal blocks and LED indicator help users to maintain and set up their system. All digital input and digital output channels are protected by 2,500 VDC isolation circuits.
