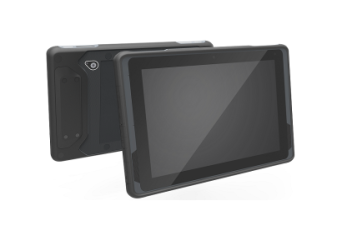

AIM-78S

Industrial Grade Tablet | 10.1" FHD 380 nits | IP65

Producător: Advantech

Display: 10.1" FHD 380 nits
Weight: 0.98 kg
Dimensions (W, D, H): 280 x 18.3 x 180.1 mm
Resistance: MIL-STD-810G, 1.2 m drop, IP65
Operating Temperature: from -10°C to 50°C
RAM: 4 GB (optional 8 GB)
Memory: eMMC (64 GB), Micro SD (up to 2 TB)
System: Android
Guarantee: 24 months

Produs epuizat

Transport gratuit pentru orice comandă, oriunde în România

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Descriere
Basic parameters
Specificație tehnică
Descarca documentatie
Produse recomandate

AIM-78S

Descriere

AIM‑78S – Industrial Grade Tablet | 10.1" FHD 380 nits | IP65

Performance in Demanding Environments
Powered by a Qualcomm mobile platform, the AIM‑78S is built to handle warehouse apps, MES systems, and service software with ease. Built-in support for DeviceOn/iService enables centralized configuration and monitoring across device fleets.

Readable Wherever You Go
The 10.1″ WUXGA touchscreen delivers sharp detail and brightness (~380 nits) even in daylight. Corning Gorilla Glass protects the panel, while glove-friendly 10-point touch simplifies operation in industrial settings.

Built for Harsh Conditions

IP65-rated for full dust and water resistance
Drop-tested from 1.2 m (4 ft) onto concrete
Operates reliably between -10 °C and +50 °C

Mobile & Connected
The tablet features a hot-swappable battery, dual-band Wi-Fi, Bluetooth, NFC, and optional LTE. A pogo-pin docking connector allows instant peripheral access in service carts or forklifts.

Interface Versatility
With full-size USB-A, USB-C, and RS-232 via LAN+COM module, the AIM‑78S connects to scanners, sensors, and legacy systems – no adapters needed.

Secure by Design
Disk encryption and remote wipe via DeviceOn help protect critical data, supported by biometric login (Android Face Unlock via front camera).

Service & Longevity
Standard 24-month warranty and long-term accessory compatibility ensure deployment stability for years.

Basic parameters

Processor	Qualcomm Mobile Platform	Water & Dust Resistance	IP65
Display	10.1" FHD (1920 × 1200), 380 nits, Gorilla Glass	Connectivity	Wi-Fi, Bluetooth, NFC, optional LTE
Battery	Hot-swappable	Certifications	MIL-STD-810G, IP65, 1.2 m drop
Storage	64 GB eMMC, Micro SD up to 2 TB	Accessories	Docking with pogo connector
Drop Resistance	1.2 m onto concrete	Customization	USB-A, USB-C, RS-232 module

Specificație tehnică

Key Specifications

Operating System	Android 13 (non-GMS) Android 10 (GMS, global ex-EU) Android 10 (non-GMS, global)
Processor & Memory	Qualcomm® SDA/SDM 660 • 8-core up to 2.2 GHz 4 GB LPDDR4 (supports 8 GB)
Storage	64 GB eMMC Micro SD slot (up to 2 TB)
Display	10.1″ IPS LCD, WUXGA 1920 × 1200 Brightness options: 380 nits or 800 nits Corning® Gorilla® Glass 3 • 10-point P-CAP touch
Barcode Scanner	Optional or Standard (model-dependent)
Wireless & NFC	Wi-Fi 5 (802.11 a/b/g/n/ac/k/v/r) + Bluetooth® 5.0 Optional LTE + GPS NFC 13.56 MHz – ISO 15693 / 14443 A/B, Felica
Standard I/O	1 × USB-C 3.1 (data & tethering) 1 × USB-A 2.0 • 1 × Audio combo jack 1 × DC-in 19 V • 1 × SIM slot 1 × Micro SD slot
Extended I/O	14-pin pogo connector (USB 2.0, UART, 5 V / 1 A) Vehicle I/O cable (CAN bus, RS-232/485, DI/DO, CVBS, etc.)
Buttons	Power • Volume ± • 1 × Programmable key
Cameras	Front – 8 MP fixed-focus Rear – 13 MP auto-focus with LED flash
Sensors	Ambient Light • E-Compass • G-sensor • Gyroscope
Environmental	Operating –10 °C to +50 °C / 14 °F to 122 °F Storage –20 °C to +60 °C / –4 °F to 140 °F IP65 • 1.2 m (4 ft) drop-tested
Mechanical	Dimensions 280 × 18.3 × 180.1 mm (11 × 0.7 × 7.1 in) Weight ≈ 980 g (2.2 lb)
Power	Hot-swappable 10.8 V, 2400 mAh (26 Wh) smart battery Runtime ≈ 12 h • Charging < 3 h Input – DC 19 V / 3.42 A • Dock pogo 12 V / 2 A
Certifications	FCC • CE • CB • UL • TELEC • VCCI • BSMI • NCC • CCC • SRRC • RCM • IC
