AIM-75H

Medical Grade Tablet | 8" FHD 400 nits | IP65

Display: 8" FHD 400 nits
Weight: 0.6 kg
Dimensions: (W, D, H): 240 x 142 x 14.5 mm
Resistance: 1.2 m drop, IP65
Operating Temperature: from -10°C to 50°C
RAM: 4 GB
Memory: eMMC (64 GB) Micro SD (up to 2 TB)
System: Android
Guarantee: 24 months

Produs epuizat

Livrare gratuita de la 500 RON

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Descriere
Basic parameters
Specificație tehnică
Descarca documentatie
Produse recomandate

AIM-75H

Descriere

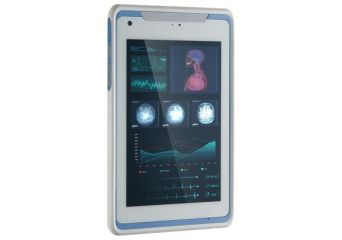

AIM-75H – 8″ Industrial Grade Tablet Built for Mobile Professionals

The AIM-75H is a compact, rugged industrial-grade tablet engineered for demanding mobile workflows in healthcare, inspection, logistics, and maintenance. With solid performance, reliable connectivity, and a highly durable build, it’s the perfect tool for teams who work on the move and can’t afford downtime.

Efficient and Ready for Action

Built on a Qualcomm platform, the AIM-75H handles medical apps, inspection reports, and industrial diagnostics with ease. Its embedded storage delivers fast system response, and microSD expandability provides the flexibility to handle large media and documentation files.

Clear Visibility, Indoors and Out

The 8″ WUXGA display (1920 × 1200) offers 400 nits of brightness, making it easy to read in bright daylight or dim warehouses. The screen is reinforced with Corning Gorilla Glass for scratch resistance and long-term durability.

Stable Connectivity for Critical Tasks

Dual-band Wi-Fi, Bluetooth, and NFC ensure uninterrupted communication with devices and networks. Optional add-ons such as 1D/2D barcode scanners or LAN+COM modules can be integrated without overhauling existing hardware fleets.

Built to Withstand Tough Environments

IP65-rated enclosure resists dust, water spray, and debris
MIL-grade drop-tested from 1.2 meters
Operates reliably from -10 °C to +50 °C — from cold storage to scorching field conditions

Easy Maintenance and Fleet Control

A standard 24-month warranty with extension options, combined with DeviceOn/iService support, enables real-time remote monitoring, updates, and simplified lifecycle management across your deployed units.

Basic parameters

Processor	Qualcomm platform	Water & Dust Resistance	IP65
Display	8″ WUXGA touchscreen with Gorilla Glass	Connectivity	Wi-Fi, Bluetooth, NFC – optional LAN+COM or barcode scanner
Battery	Integrated battery	Certifications	Industrial Grade
Storage	Expandable flash storage	Accessories	Mounts and modular options available
Drop Resistance	1.2 m	Fleet Management	DeviceOn/iService support

Specificație tehnică

Key Specifications

Operating System	Android 12 (AER-certified, global) Android 12 (standard, global) Android 10 (GMS, global except EU) Android 10 (non-GMS, global)
Processor & Memory	Qualcomm® Snapdragon™ 660, 8 cores up to 2.2 GHz 4 GB LPDDR4 (Expandable to 8 GB)
Storage	64 GB eMMC Micro SD slot (up to 2 TB)
Display	8″ IPS LCD, 1920 × 1200 (WUXGA) Brightness 400 cd/m² Corning® Gorilla® Glass 3, 10-point P-CAP touch
Wireless & NFC	Wi-Fi 5 (802.11 a/b/g/n/ac/k/v/r) + Bluetooth® 5.0 NFC 13.56 MHz – ISO 15693 / 14443 A/B, Felica
Standard I/O Ports	1 × USB-C 3.0 (data) 1 × USB-A 2.0 1 × Audio combo jack 1 × SIM slot • 1 × micro SD slot 1 × DC-in (19 V)
Extended I/O	14-pin pogo connector (USB 2.0, UART, 5 V / 1 A)
Buttons	Power • Volume ± • 1 × Programmable key
Cameras	Front – 5 MP, fixed focus Rear – 8 MP, autofocus + LED flash
Sensors	Ambient Light • E-Compass • G-sensor • Gyroscope
Environmental	Operating: 0 – 35 °C / 32 – 95 °F Storage: –20 – 60 °C / –4 – 140 °F IP65, drop tested 1.2 m
Mechanical	Dimensions: 240 × 142 × 14.5 mm (9.44 × 5.59 × 0.57 in) Weight: ≈ 600 g / 1.32 lb
Power	Hot-swappable 4900 mAh / 18.6 Wh battery – ≈ 12 h* runtime Charging < 3 h • USB-C 5 V / 3 A, 9 V / 2 A Dock pogo: 9 V / 2 A
Certifications	FCC • CE • CB • IEC • UL • TELEC • VCCI • BSMI • NCC • CCC • SRRC • RCM • IC
