ADAM-5081

4-ch High Speed Counter/Frequency Module

Minimum Pulse Width: 1μ sec. (Frequency/Counter Mode)
Function Mode: Counter (Up/Down, Bi-direction, Up, A/B Phase) Frequency
Input Frequency: Frequency Mode: 5Hz ~1MHz Counter Mode: 1MHz max.
Isolated Voltage: 2500 Vdc
Programmable Digital Noise Filter: 1~65000μ sec.
4 channels for Counter, 8 channels for Frequency
Counter Aux. Function: Initial preset, hi-low alarm setting, alarm digital output mapping, overflag

Produs epuizat

Livrare gratuita de la 500 RON

Promocja cenowa na model HDR-15-5

Produs destinat exclusiv utilizării profesionale

Descriere
Descarca documentatie
Produse recomandate

ADAM-5081

Descriere

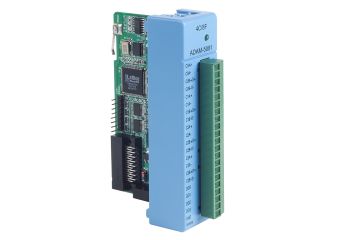

ADAM-5081 is a 4-Channel High Speed Counter/Frequency Module, users can select either counter or frequency mode for data input. This high speed module can support a high input frequency from 5Hz to 1MHz. And it provide a noise filter function 1~65000μsec. ADAM-5081 offers users flexible and versatile applications such as counter, frequency, alarm setting, Up / Down, Up, A/B phase or Bi-direction Functions.

Minimum Pulse Width: 1μ sec. (Frequency/Counter Mode)
Function Mode: Counter (Up/Down, Bi-direction, Up, A/B Phase) Frequency
Input Frequency: Frequency Mode: 5Hz ~1MHz Counter Mode: 1MHz max.
Isolated Voltage: 2500 Vdc
Programmable Digital Noise Filter: 1~65000μ sec.
4 channels for Counter, 8 channels for Frequency
Counter Aux. Function: Initial preset, hi-low alarm setting, alarm digital output mapping, overflag
